Victorian Tiles Restoration for Worn Minton Floor Revival

What Causes Persistent Dullness in Minton Floors After Cleaning in Walsall?

Assessing the Initial Condition of Victorian Tiles for Effective Restoration

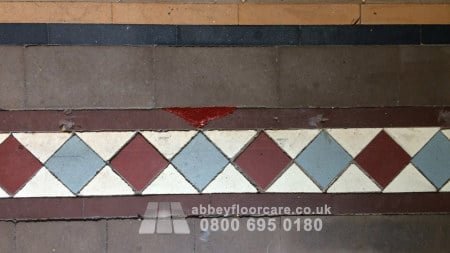

If your Victorian tiles still appear lacklustre after multiple cleaning attempts, the issue likely lies with trapped contaminants and structural movement instead of just surface dirt. The Walsall Minton hallway showed signs of surface deterioration, muted colours, loose tiles, an outdated sealer, and residues embedded within the clay material. regular mopping only redistributed grime rather than effectively removing it. This scenario firmly categorised the project as one of restoration, necessitating specialised techniques over conventional cleaning methods.

Despite retaining its status as an original patterned entrance floor, the Walsall hallway did not display the vibrant contrasts of red, buff, cream, and dark clay typically associated with a well-restored Minton layout. Foot traffic had pressed fine soil into the tile surface, while the previous topical sealer had diminished the overall finish. the grout lines had darkened due to accumulated surface residues. A similar issue appeared in the Minton tile floor restoration in Ovington, where prior coverings and compacted dirt obscured the original floor until careful restoration revealed the intricate pattern.

Walsall features a significant number of late Victorian and Edwardian terraced homes, in addition to interwar semi-detached residences and post-war housing developments. A substantial portion of the older housing stock originates from the late 19th and early 20th centuries, making Victorian tile floors particularly common in entrances, porches, pathways, and occasionally kitchens within these historic properties. Located in the West Midlands metropolitan area, Walsall is governed by Walsall Council, with most central areas falling under the WS postcode districts. The town’s rich industrial heritage and preserved period housing contribute to the prevalence of many original clay and encaustic tile floors, often hidden beneath modern coverings or outdated sealers.

How to Identify Hidden Residues That Cause Tiles to Appear Dull

The presence of trapped residues explains why the hallway looked worn even after years of cleaning efforts. The porous clay structure allowed dirt, old cleaning products, waxes, and coating residues to settle beneath the visible layer of the tiles. While fresh water might dampen the contamination, it was inadequate for removal. This illustrates the practical effects of tile porosity on an ageing Minton floor: soil infiltrates the pores, accumulates around grout lines, and results in a flat appearance despite diligent cleaning efforts.

The old topical sealer had created an inconsistent barrier across the floor. Coatings that initially provided a temporary shine can degrade into sticky residues, trapping grime and creating darker patches in areas where the finish has worn thin due to foot traffic. the restoration process required a careful stripping of the old sealer, the release of surface residues, thorough rinsing of the floor, and extraction of the resulting slurry with a wet vacuum before any protective finish could be applied.

Contamination from carpet adhesives also posed challenges since many Walsall hallway tiles had previously been covered with carpet, linoleum, or vinyl at various points. A hidden layer could be concealed beneath thick glue, bitumen residues, tape remnants, and staining that only becomes evident once the covering is removed. In this case, there was no significant adhesive presence dominating the hallway; however, the inspection sought out brownish glue, black bitumen, softened coatings, and scraper marks, as these residues can affect the restoration process.

How Do Moisture Behaviour and Tile Stability Affect Restoration Efforts?

The characteristics of old permeable sub-floors significantly influenced the cleaning and sealing methods suitable for the Walsall floor. Excess moisture can penetrate the porous clay, reach the underlying bedding, and lead to tile movement, lifting, dampness, salt reactions, or an unstable foundation before sealers are applied. This moisture behaviour required a focus on controlled cleaning, careful rinsing, and extraction instead of flooding the hallway with water.

Loose tile movement was a crucial factor, as water and slurry can infiltrate beneath raised edges and into gaps. Once slurry dries beneath the tile surface, the floor may still appear dirty from the edges even after the main surface has been cleaned. the restoration process treated the floor as a cohesive historical assembly: clay tiles, grout lines, bedding, moisture pathways, and breathable protective measures all needed to work together seamlessly.

During the inspection, the condition of missing tiles, backfilled doorway patches, exposed sub-floor areas, cement leveling compound backfill, and previous repair infills were also considered. Cement leveling can disrupt the original tile pattern, hinder visual continuity, and leave a repaired hallway looking patchy rather than seamless. This Walsall floor primarily required local resetting instead of extensive replacement work; however, assessing the doorway, original tiles, and sub-floor condition ensured that a simple clean was not mistaken for a proper restoration.

Why Is This Restoration Project Necessary?

This undertaking was categorised as restoration because mere cleaning would not resolve loose tiles or fix the failures of old coatings. The work was essential to address compacted grime, surface coatings, grout line residues, moisture risks, and unstable areas before any sealing could occur. A similar restoration sequence is documented in the Victorian tile restoration case study in Penkhull, where loose sections and damaged joints also required reintegration into the overall floor layout to achieve a visually coherent result.

The original Minton pattern had not vanished; rather, it was visually obscured. Restoration effectively removed old products and ingrained dirt that muted the colours, subsequently protecting the clay with a breathable finish instead of a heavy surface film. Following professional intervention, the floor was expected to display a significantly enhanced appearance, and a professionally restored and properly sealed Victorian tile floor is considerably easier to clean and maintain compared to a worn or improperly treated floor.

Ongoing maintenance is crucial for safeguarding the restored clay surface. Regularly removing dry grit before wet mopping and using a pH-neutral cleaner instead of harsh household chemicals is essential. Strong cleaners should be avoided as they may leave alkaline residues, bleach grout lines, and reduce the lifespan of the sealed finish. Broader maintenance principles for older porous clay floors are detailed in the Victorian and Minton tile cleaning hub, which supports the aftercare decisions made in this Walsall case study.

What Key Factors Contribute to Loose Tiles and Deep Soil in This Restoration Project?

The existence of loose Minton tiles and deep soil prompted this hallway to become a restoration project due to underlying issues hidden beneath the visible surface. The homeowner noticed dull colours, dark joints, and unstable areas; however, the root causes included movement, trapped residues, and contaminated slurry pathways beneath and between the original tiles. Addressing these challenges required structural re-bedding before deep cleaning could effectively restore the floor to a uniform state.

The extraction of slurry was critical, as loosened soil, rinse water, mineral salts, and old coating residues had to be removed from the tile pores rather than permitted to re-dry within them. The restoration employed controlled water usage, agitation, rinsing, and wet vacuum removal, ensuring the floor was cleaned without excessively saturating the old permeable sub-floor. Similar movement and moisture behaviours are discussed in the right way to restore Victorian tiles properly, illustrating how stabilisation and breathable protection are integral components of the historical flooring restoration sequence.

Stabilising loose tiles is essential before deep cleaning can uniformly restore the floor.

What Steps Were Taken to Stabilise the Walsall Hallway While Preserving the Original Tiles?

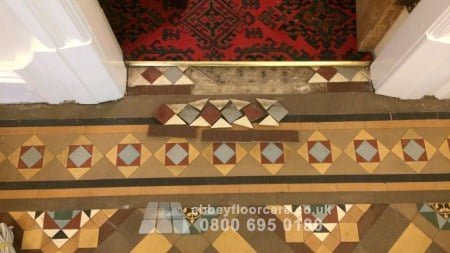

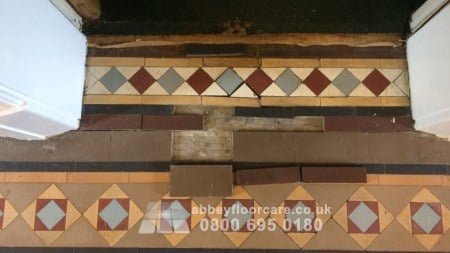

Scrubbing a loose Minton hallway before stabilising it risks pushing slurry beneath the tiles, potentially damaging fragile edges. In this case, the loose sections were carefully lifted, old bedding and residues were removed, and the tiles were reset to maintain the integrity of the original layout. This methodology ensured that repairs were an integral part of the restoration workflow rather than becoming a separate repair narrative.

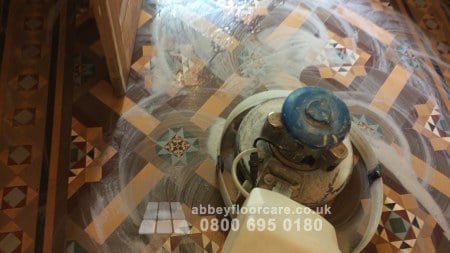

Thorough surface cleaning would have removed some visible grime, but it would not have resolved the issues of the old sealer, grout smears, mineral salts, and residues lodged within the pores. Controlled restoration employed an alkaline cleaner, scrubbing pad, rotary machine, clean rinse water, and wet vacuum extraction to eliminate contaminated slurry from the tile surface and joints. In cases where acid wash neutralisation was required due to alkalinity, traces of cement haze or mineral salts were rinsed away before moisture could evaporate and disturb the colour balance.

Careful stabilisation protected the original tiles, as the process was dictated by the floor’s condition rather than applying a one-size-fits-all approach across the entire area. Broken tiles, missing tiles, and the need for matching replacement tiles were all taken into account to ensure that the pattern exhibited continuity. this hallway primarily required resetting, thorough cleaning, and breathable protection. This sequence restored the floor’s appearance, simplified surface maintenance, and avoided grinding down the historic clay face.

How Did the Restoration Process Enhance Clarity While Preserving Historical Character?

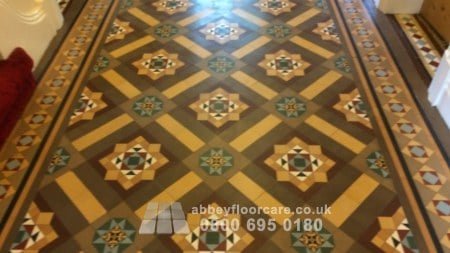

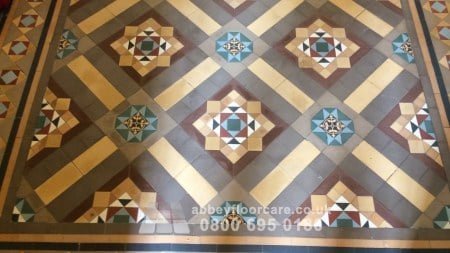

If your Victorian tiles hide colours beneath layers of dull wear, restoration should improve definition without erasing the floor's authentic age. The Walsall floor regained its vibrant contrasts as old coatings, embedded residues, and dark joint contamination were meticulously removed from the clay surface. The original Minton pattern became more pronounced, while genuine signs of traffic wear and historical character remained evident.

Historic dishing was preserved, as grinding the floor flat would have removed original fired clay from the tile surface. Dishing signifies permanent wear accumulated over decades of foot traffic and should not be viewed as a failure when the finished floor retains its historical context. The protective finish applied was a breathable colour-enhancing sealer that penetrated the pores, was buffed off without leaving a superficial coating, and provided stain resistance while allowing moisture to escape.

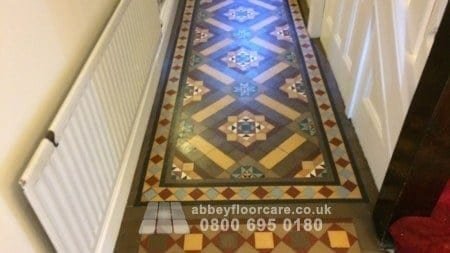

The completed hallway showcased a significantly improved appearance compared to its pre-restoration state and, in many respects, surpassed how it might have looked under outdated domestic coatings. The sealed surface became easier to maintain, as removing dry grit, using neutral pH cleaning, and resealing at appropriate intervals helped preserve the restored colour depth. The behaviour of colour in worn patterned clay is further explored in restoring colour and pigment to faded Victorian mosaic tiles, which delves into surface wear and clay pigment depth in greater detail.

Where Can You Access More Information on Common Issues with Victorian Tiles?

Gaining an understanding of frequent Victorian tile problems requires a comprehensive context since residues, loose sections, faded colours, and missing pieces often do not occur in isolation. The Walsall hallway exemplifies why historic floors demand a holistic restoration perspective: the original tiles, grout lines, moisture pathways, coating histories, and final protective measures all contributed to the outcome. A related Minton hallway project is detailed in the Minton tile hallway restoration in Stafford, where surface contamination and controlled extraction similarly shaped the final appearance of the floor.

When encountering broken tiles, missing tiles, or areas of old repair that disrupt a Victorian hallway pattern, it is crucial to source and match replacement tiles carefully. Quality repair work respects the original size, colour, border logic, thickness, and layout of the old floor to ensure new work integrates seamlessly with the existing design. More extensive cleaning, sealing, and aftercare guidance can be found in the Victorian and Minton tile cleaning hub, which connects this Walsall outcome to broader material guidance.

Proper ongoing maintenance remains the key factor in prolonging the life of the restored floor. A tailored handover should provide practical advice: remove grit before wet cleaning, use a pH-neutral maintenance cleaner, avoid bleach or steam cleaning, and assess sealing processes before the surface begins to absorb spills rapidly again. Simple yet vital.
