Solar Switchboard Upgrade Enhances Chelmer’s Ducted Air Con

Project Location: Chelmer
Project Scope: Switchboard enhancement
Outcome: Comprehensive single-phase switchboard upgrade supporting a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning without the need for a three-phase upgrade.

Discover the Benefits of Choosing Precision Electrical & Air for Your Switchboard Upgrade

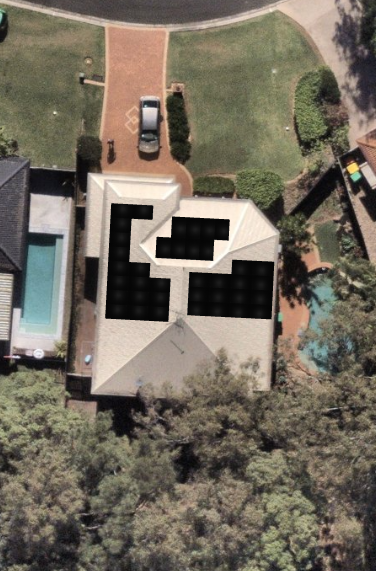

This homeowner in Chelmer initiated a major renovation project, which included the installation of a 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and comprehensive blackout protection for their home. Additionally, a state-of-the-art ducted air conditioning system was integrated into the renovation. Before connecting these advanced systems, it was essential to assess and upgrade the existing switchboard to ensure compliance with current regulations and to effectively manage the increased electrical loads created by these installations.

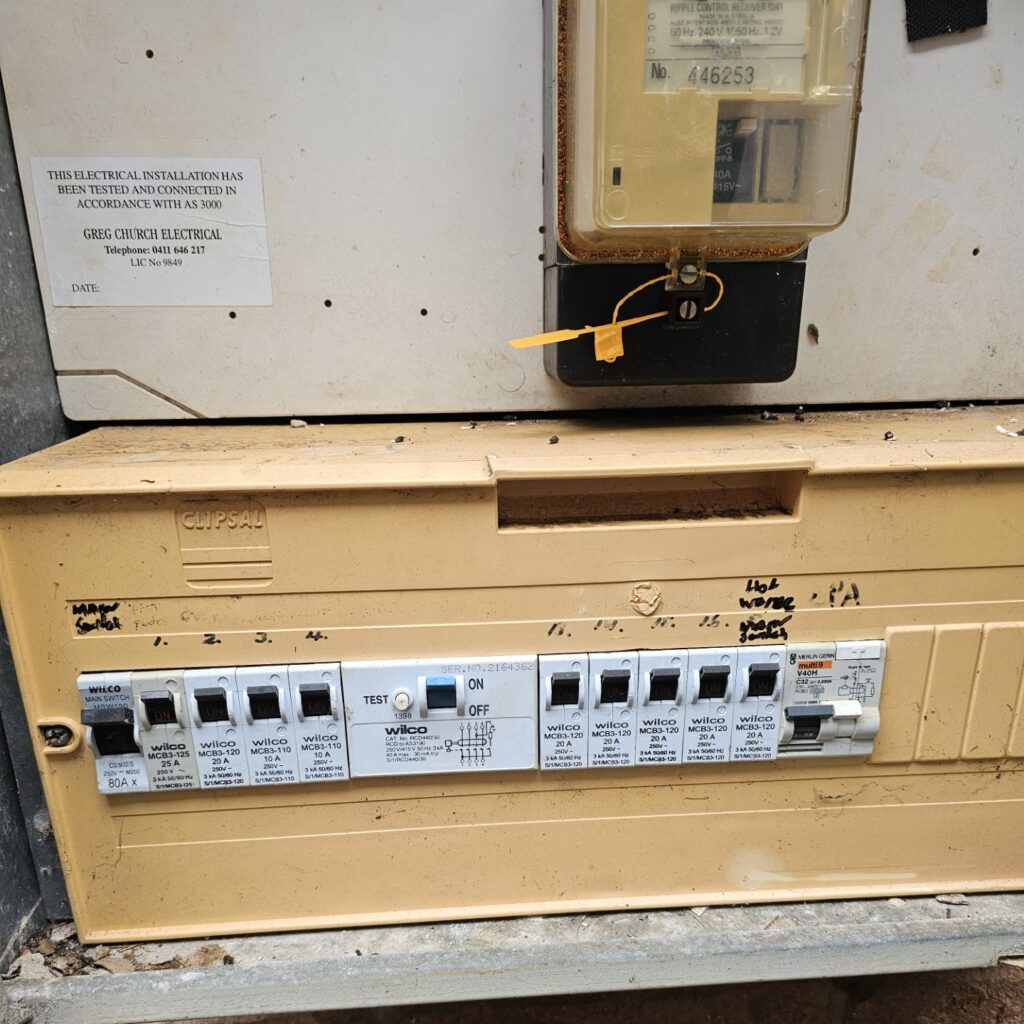

The outdated switchboard posed several challenges as it contained obsolete circuit breakers, only one Residual Current Device (RCD) that protected the entire property, and was incapable of integrating both solar energy and battery storage. Additionally, the insufficient circuit labeling rendered it non-compliant with modern standards that govern contemporary energy generation systems. This lack of compliance posed a significant risk to the reliable operation of the upgraded systems.

Is a Three-Phase Upgrade Truly Necessary for Your Solar System?

When evaluating the specifications of a 17.86kW solar system paired with a 30kWh battery, many homeowners often assume that a three-phase upgrade is indispensable. This common misconception can lead to significant financial implications for homeowners, potentially incurring costs between $3,500 and $6,000, along with a protracted wait for approval from Energex regarding network modifications.

Undertaking a Detailed Technical Assessment

Two pivotal factors dictated the evaluation of whether a three-phase upgrade was warranted. Firstly, the supply cable for the residence was conveniently positioned near the street junction. This advantageous location allowed for the voltage rise calculation for solar energy export to comfortably remain within Energex’s single-phase limit of 2%. Secondly, since the solar and battery systems were tailored to alleviate demand on the grid rather than augment it, there was no technical rationale from the network's viewpoint necessitating a three-phase upgrade. Furthermore, the ducted air conditioning system was confirmed to align with the required parameters for efficient single-phase operation.

Ultimately, the decision was made to retain the single-phase configuration. The switchboard was upgraded to ensure it could safely and effectively accommodate all new electrical loads without compromising safety or adherence to current standards.

Comprehensive Examination of Installed Components for Improved Safety

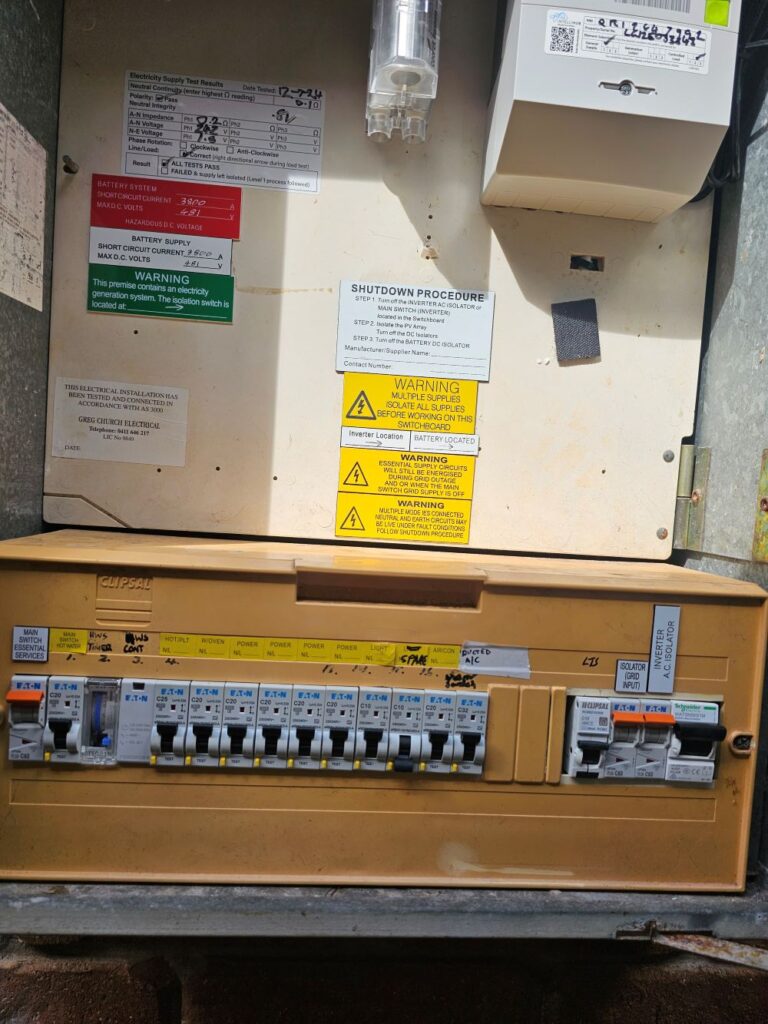

The existing switchboard underwent thorough disassembly and extensive reconfiguration. Every circuit breaker was replaced with new, appropriately rated units from Eaton, ensuring meticulous labelling for straightforward identification. The circuits were carefully segregated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning were assigned dedicated circuits to enhance safety and comply with current regulations.

A timer was incorporated into the hot water service to ensure it operates efficiently during peak solar generation hours. This strategic addition minimises reliance on the grid by optimising the use of the solar system’s output throughout the day. Additionally, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure optimal functionality.

The upgraded switchboard was specifically designed for seamless integration with both the solar inverter and battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system rating at 481V DC, with a short-circuit current of 3800A, alongside multiple supply warnings and a complete shutdown procedure. All electricity supply tests were conducted, successfully passing and documented for the switchboard.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is appropriately prepared for any future electrical service work required at the property.

Advantages of the Successful Upgrade for Homeowners

The homeowner has successfully secured a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses linked to a three-phase upgrade that was not critical for their unique situation.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

Although three-phase upgrades can be essential in specific scenarios, they are not universally required. If you have received a substantial quote for a switchboard upgrade and find yourself uncertain about its relevance to your circumstances, allow Precision Electrical & Air to conduct a comprehensive assessment. We will provide you with a clear evaluation based on your cable distance, load requirements, and the actual criteria that Energex will apply to approve your property.

We assure you that there will be no upselling; you will receive an accurate answer tailored to your home.
