French Drain Solutions for Effective Runoff in Shellharbour

Addressing Water Ingress Challenges in Shellharbour

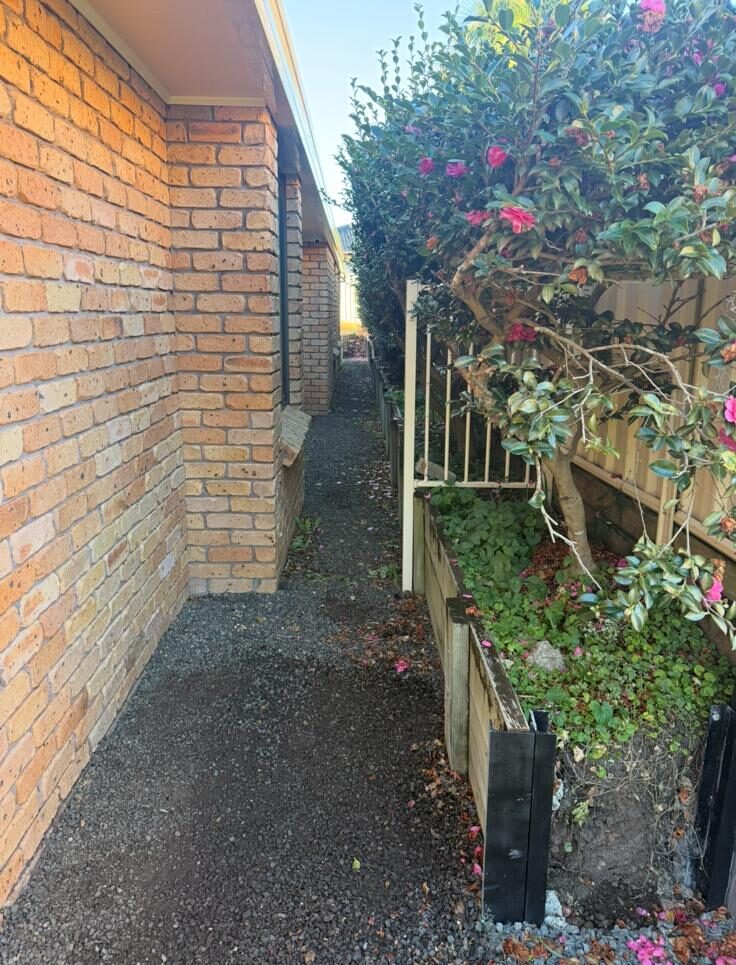

A homeowner in Shellharbour encountered a serious and worsening problem with water ingress. Rainwater from two neighbouring properties situated at a higher elevation began to flow into the yard, infiltrating beneath the foundation of the house. This water intrusion caused damage to the flooring, promoted rising damp, and facilitated mould growth within the property, jeopardising recent renovations.

How Can You Identify Signs of Water Intrusion?

The water ingress originated from surface runoff as well as subsurface water flowing downhill from the back and side yards of adjacent properties. Without adequate drainage to intercept this incoming water, it was compelled to flow underneath the house, leading to significant problems.

Establishing an Effective Drainage System

CS Plumbing designed and implemented a gravity-fed French drain system to capture and redirect water before it could penetrate the home's foundation.

The project encompassed several key components:

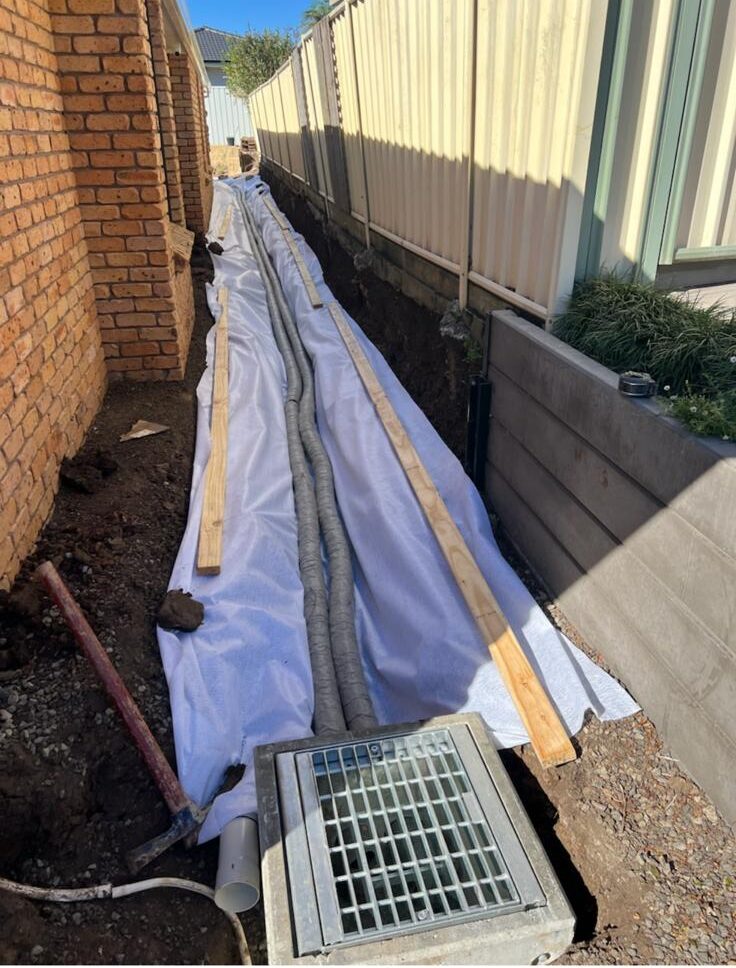

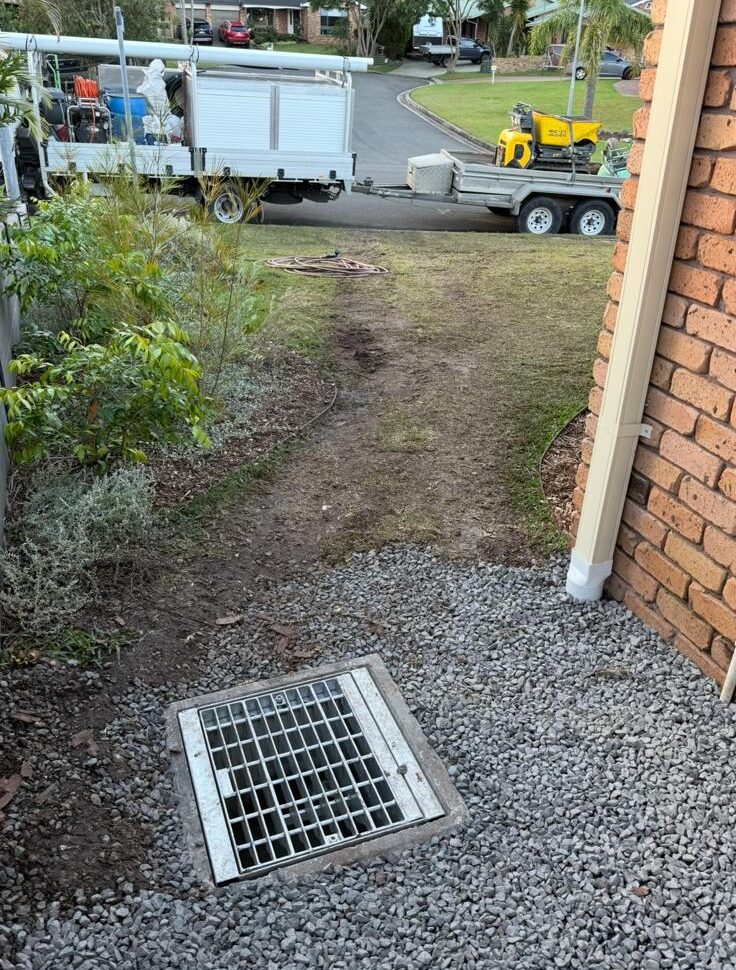

A French drain system tailored to collect both surface and subsurface water from neighbouring properties, efficiently channelling it through gravity to a concrete pit.
A 100mm PVC pipe extending from the pit to the curb, featuring meticulously drilled holes for optimal water discharge.
Three new, larger-diameter Colorbond metal downpipes replacing the original smaller pipes, connected to new 100mm PVC piping that directs water to the curb.

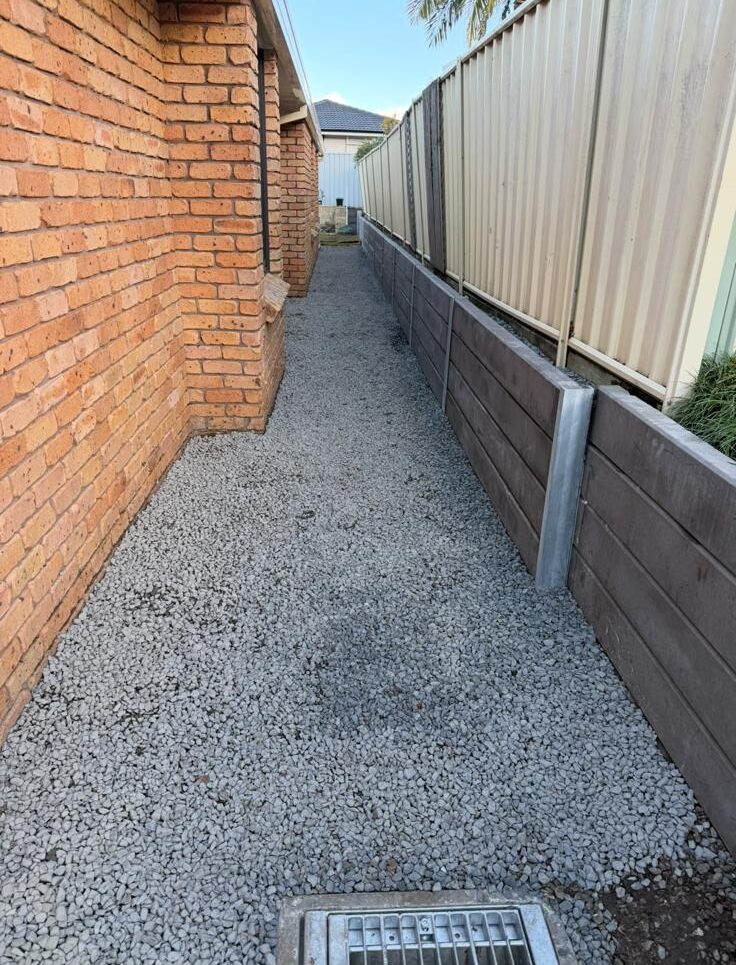

A sturdy retaining wall system constructed along the boundary using concrete sleepers and galvanised steel posts, with auger holes drilled by an excavator to create a solid barrier that prevents water from the adjacent yard.

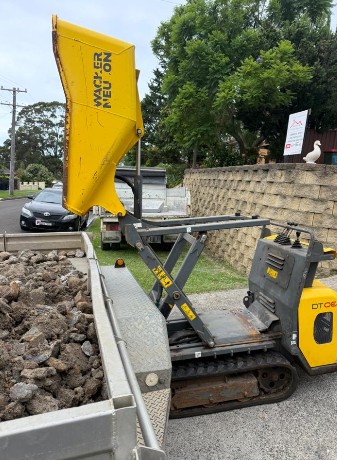

Effective soil removal carried out on-site using a dumper for proficient site management.

Which Steps Guarantee Efficient Water Management?

The newly installed system now effectively captures both surface and subsurface water at the property boundary, ensuring it is redirected away from the home. The homeowner has secured a long-lasting, low-maintenance solution that protects their foundation, flooring, and investment in renovations.
