Ducted Air Conditioning Solutions in Tarragindi: Split Options Available

Precision Electrical & Air has successfully completed the installation of dual air conditioning systems at a residential property in Tarragindi. This project featured the provision and installation of a Daikin ducted system on the upper level, along with a Daikin high-wall split system located in the downstairs living room.

Thorough Installation of the Daikin FDYAN160AV1 16.0kW Ducted Air Conditioning System

Precision Electrical & Air conducted a detailed installation of the Daikin FDYAN160AV1 16.0kW ducted air conditioning system. The indoor unit was strategically installed within the ceiling space above the void, while the condenser was securely mounted on the front balcony wall, utilising rubber feet to enhance stability. All connections between the indoor and outdoor units were discreetly concealed within ductwork as they exited from the ceiling space.

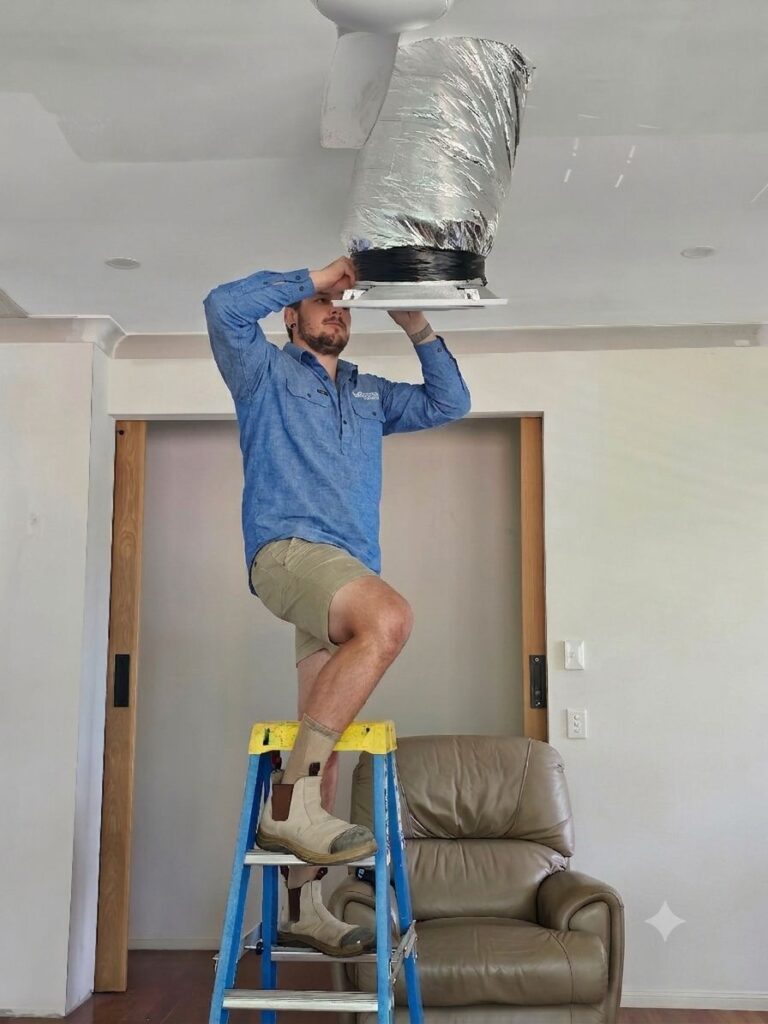

To facilitate effective water drainage, two drainage systems were installed from the indoor unit and safety tray leading to the external gutter. The installation precisely positioned ducting, branch take-offs, zone motors, and air plenums throughout the ceiling space, ensuring seamless integration with the indoor unit. A return air grille was placed in the upstairs hallway to optimise the system’s airflow.

A dedicated electrical sub-circuit was established, extending from the switchboard to the outdoor unit, which featured an NHP isolation switch conveniently located next to the condenser. In the upstairs hallway, a MyZone Multipoint touchpad zone controller was installed, allowing for intuitive temperature adjustments linked directly to the zone motors.

Expert Installation of the Daikin FTXV80W 8.0kW High-Wall Split System Air Conditioning

In the downstairs living room, the Daikin FTXV80W 8.0kW high-wall reverse cycle split system was installed with precision. New ducting, interconnect cables, and copper pair coils were added to connect the indoor and outdoor units, with the condenser also mounted on rubber feet for stability during operation.

A dedicated electrical circuit was established from the switchboard to the outdoor condenser, which included an NHP isolation switch for safety. An Aspen Silent+ Mini condensation pump was installed beneath the indoor unit and connected to the nearest stormwater downpipe, enabling efficient drainage. Following the installation, the system underwent thorough commissioning to ensure optimal performance.

Enhance Your Comfort with Customised Zoned Air Conditioning Solutions

With these installations, the property now enjoys zoned ducted heating and cooling on the upper level, complemented by a dedicated high-wall unit in the downstairs living area. Both Daikin systems were supplied and installed in strict accordance with manufacturer specifications, ensuring that appropriate electrical circuits and drainage systems were established.

For professional ducted or split system air conditioning installation services in Tarragindi and the surrounding suburbs of Brisbane Southside, contact Precision Electrical & Air at 0423 163 359.
