Dedicated Circuits for Heavy Tool Workshop Power Solutions

If you own a shed on a rural property and are contemplating converting it into a fully functional workshop, prioritising the electrical infrastructure is essential. Operating a MIG welder, air compressor, and table saw on the same circuit as your home can create significant issues, such as frequent circuit breaker trips, flickering lights, and hazardous overload situations that can compromise safety and functionality.

This in-depth guide addresses the critical aspects of wiring a dependable workshop in rural areas of the Mid North Coast. We will delve into the significance of dedicated circuits, sub-boards, and the advantages of three-phase power for larger equipment. If your requirements are limited to basic power needs—like lighting and a few outlets—please refer to our guide on Shed Wiring on Acreage for a more suitable starting point. This article specifically caters to workshops that necessitate substantial power for demanding tasks.

Why Are Dedicated Circuits Essential for Your Workshop’s Power Demands?

Many homes utilise shared circuits for multiple power outlets, which often suffices for low-power devices like kettles and televisions. complications arise when using a 32-amp MIG welder alongside an air compressor. Without proper circuit management, this can lead to serious issues.

Consider the potential challenges of connecting heavy machinery to household circuits:

• Frequent circuit breaker trips — A welder drawing over 30 amps on a 20-amp circuit will trip the breaker instantly or, worse, cause the wiring to overheat before the breaker activates.
• Voltage drops — Long cable runs from the main board to the shed can result in voltage sag, causing tools to operate at elevated temperatures, perform inefficiently, and wear out more quickly.
• Power interruptions in the house — Your partner could lose power in the kitchen due to the compressor starting up, leading to unwanted discussions.
• Increased fire risks — Overloaded wiring in walls and cable runs is a leading cause of electrical fires in rural regions.

Implementing dedicated circuits can effectively resolve these issues. Each heavy tool should have its own dedicated circuit, appropriately sized for its load, along with individual breaker protection. This configuration ensures that nothing is shared, thus preventing overloads.

How to Evaluate the Power Requirements of Essential Workshop Equipment

Before your electrician can draft an effective circuit layout, it’s crucial to comprehend the power needs of your equipment. Below is a summary of common workshop tools and their typical power consumption:

• MIG welder — Requires between 15A and 32A, depending on the model. Larger 240V welders typically operate at the higher end. Three-phase units have different power requirements, which we will discuss later.
• Air compressor — Consumes approximately 10A to 15A. The startup surge can be significant, with compressor motors often drawing three to four times their running current for a few seconds upon startup.
• Table saw — Generally uses between 10A to 15A for a quality cabinet saw. Less expensive contractor saws may use less power, but investing in a quality option is advisable.
• Lathe (wood or metal) — Similar to table saws, these generally require between 10A and 15A, with metal lathes usually on the higher end of the scale.
• Dust extractor — Approximately 10A for a single-phase unit. It must run continuously while other tools are in use, necessitating its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, thus also requiring a dedicated circuit.

When you calculate the total power draw, it becomes clear that a single 20-amp circuit from the house is inadequate. A fully equipped workshop can easily demand 80 to 100+ amps across all circuits when operating at full capacity, underscoring the necessity for a comprehensive electrical plan.

Selecting the Right Circuit Breaker Size and Ensuring RCD Protection

Every circuit in your workshop requires a breaker that corresponds with the cable size and expected load. Your electrician will determine this based on your equipment, but as a general guideline, consider the following:

• 15A or 20A circuits — Ideal for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Necessary for welders, plasma cutters, and other heavy single-phase machinery that demand significant power.
• Three-phase breakers — These should be sized according to the specific requirements of your equipment (details below).

RCD protection is mandatory. According to AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must include RCD (safety switch) protection. This legal requirement safeguards against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture increase the likelihood of earth faults. RCDs rapidly cut power if there’s a current leak to earth, which can mean the difference between a minor shock and a serious injury.

Your electrician will typically employ a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that combine both functionalities. RCBOs are particularly advantageous in workshops because a fault in one circuit does not disrupt power to others, resulting in a more reliable electrical system.

Why Install a Dedicated Sub-Board for Your Workshop’s Electrical Needs?

Rather than running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop is a more effective solution. Here are the benefits:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This setup reduces voltage drop and decreases cable costs.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, you won’t have to walk back to the house to reset it, enhancing operational efficiency.
• Future expansion — A properly sized sub-board allows for the addition of more circuits in the future, making it easier to accommodate new tools later on.
• Isolation capability — You can turn off all workshop power from a single main switch without affecting the household electricity, a vital safety feature.

If your main switchboard is outdated or operating at full capacity, you may need an upgrade to effectively support the workshop sub-board. Older ceramic fuse boards may not safely handle the increased load.

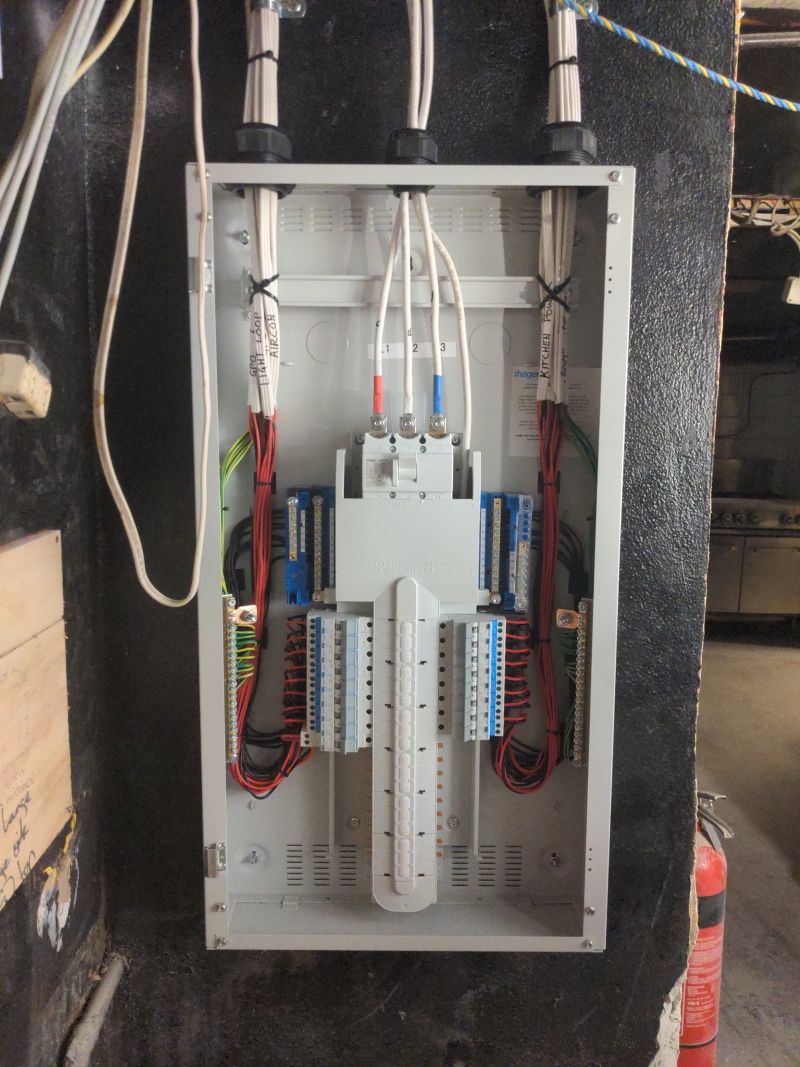

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future additions to ensure long-term efficiency.

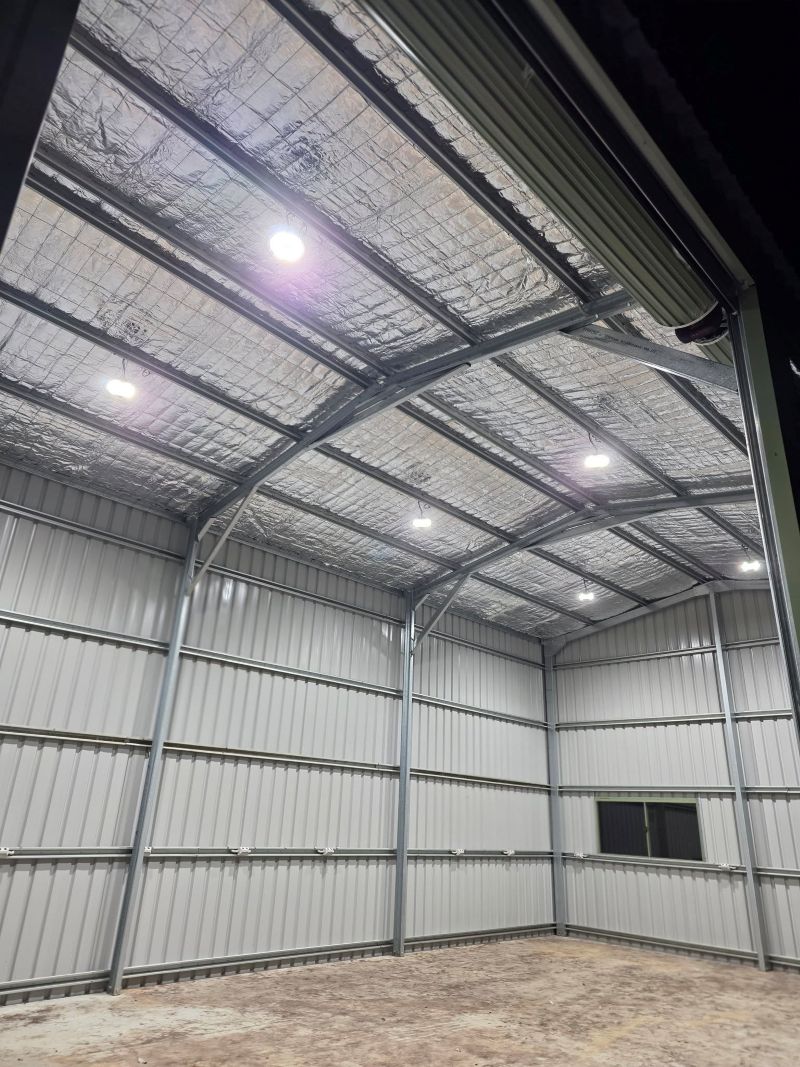

Create an Effective Lighting Strategy for Your Workshop

Proper lighting is crucial for safety in your workshop. Clear visibility is essential, especially when working with sharp blades and hot materials. Here are some key lighting considerations:

• High-lumen LED battens — LED panels or battens offer bright, uniform illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure optimal visibility.
• Dust-proof fittings — Standard lights can become obstructed with sawdust and metal shavings. Opt for IP-rated fittings that are dust and moisture resistant for durability and safety.
• Task lighting at workstations — While overhead lighting illuminates the general area, focused lighting at the workbench, lathe, and drill press is crucial for precision work, promoting productivity and safety.
• Dedicated lighting circuit — Lighting should operate on its own circuit, ensuring illumination remains when a power circuit trips. Being left in the dark next to a running table saw poses a significant safety hazard.

We have extensive experience with lighting designs in commercial spaces. Our team can assist you in creating a workshop lighting plan that significantly enhances your working environment while adhering to safety standards.

Plan for Efficient Ventilation and Dust Extraction Circuits

When undertaking woodworking or welding, ensuring proper ventilation is as critical as having sufficient electrical power. Dust extraction systems and exhaust fans require dedicated circuits due to several important factors:

• Continuous operation — Your dust extractor must run whenever you are cutting. It cannot share a circuit with the tool it serves, as this would compromise safety and effectiveness.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In an optimally designed workshop, the dust extractor can be wired to activate automatically when certain tools are switched on. This requires careful circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to ensure proper airflow. If you are using a cyclone-style dust collection system, it might require a 20A circuit based on motor specifications.

Leverage the Benefits of Three-Phase Power for Heavy Equipment

If you are engaged in intensive metalwork or operate large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may not suffice. Three-phase power offers several distinct advantages:

• Increased power capacity — Three-phase motors operate more efficiently and provide greater power without the excessive startup surges commonly associated with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power, ensuring optimal performance.
• Smoother operation — Three-phase motors run more smoothly and cooler, extending the lifespan of your tools and enhancing overall efficiency.

Accessing three-phase power in rural areas of the Mid North Coast depends on availability at the street level. Some properties may already have three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For further details, refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is available, your workshop will need a three-phase switchboard installation complete with appropriately rated breakers and an effective earthing system to ensure safety and compliance.

Protect Your Equipment with Surge Protection

Tools equipped with electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly vulnerable to voltage spikes. Notably, your workshop generates surges every time a large motor starts or stops. Coupled with the voltage instabilities often encountered in rural power lines, your equipment is at considerable risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they affect your tools. This cost-effective measure is far less expensive than replacing the electronic components of a $3,000 welder or CNC controller.

If your property is prone to storms—which is common on the Mid North Coast—we recommend adding surge protection at the main switchboard to guard against lightning-induced surges that could damage your equipment.

For properties relying on a generator for backup power, incorporating a generator changeover switch ensures smooth transitions between mains power and generator supply, preventing back-feeding or damage to connected equipment.

Incorporate Additional Features for Your Workshop Fit-Out

Here are several additional elements to integrate into your workshop wiring from the outset:

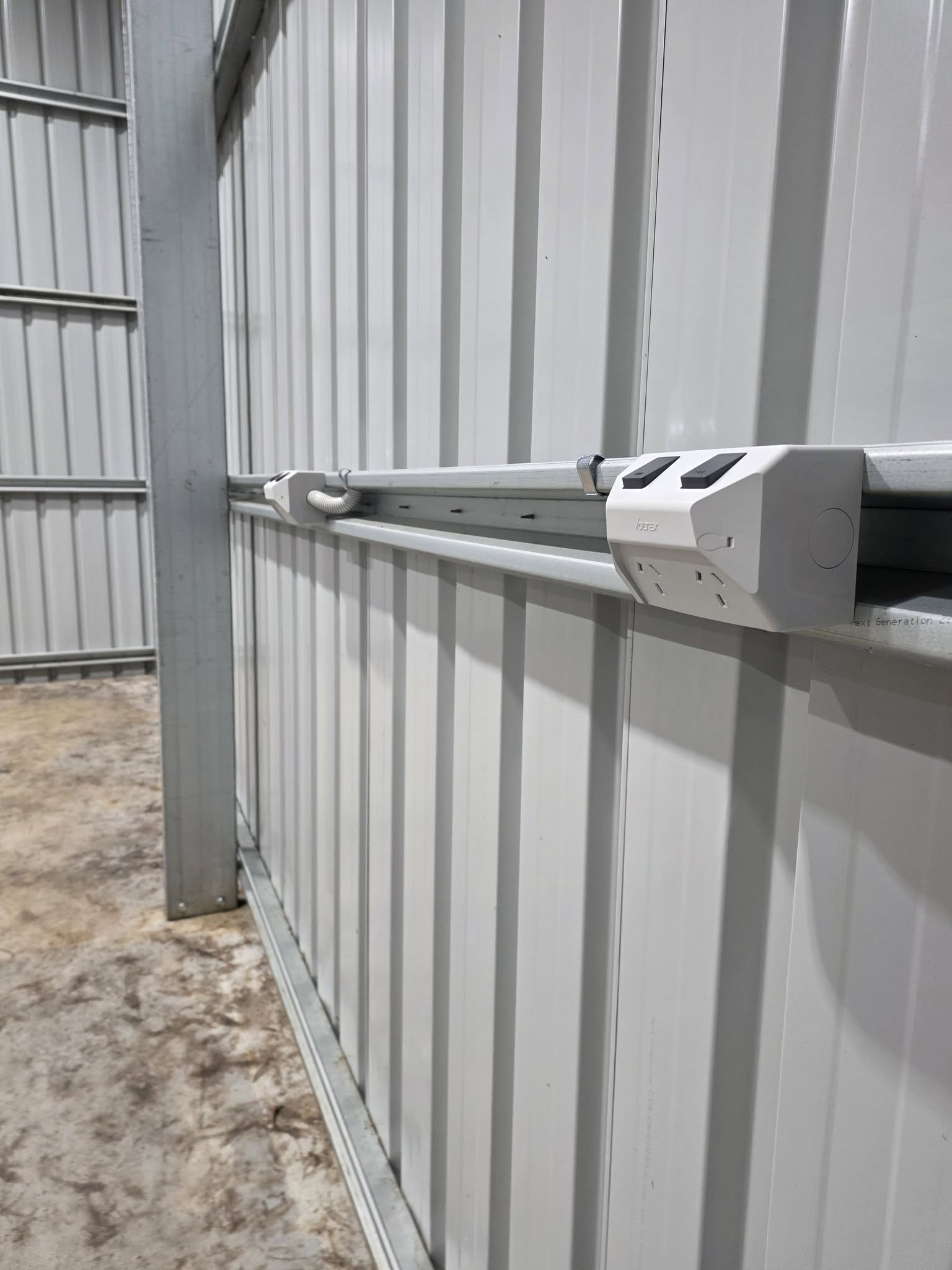

• Ample power points — Install more power points and switches than you anticipate needing. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every workbench and outlets positioned conveniently near key machinery.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. It is considerably easier to run cables during the initial fit-out than after the walls are finished.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, especially in rural areas where street lighting may be inadequate.
• EV or equipment charging — If you utilise electric equipment (such as battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets.

Estimate Your Workshop Electrical Fit-Out Expenses

Cost estimates will vary based on workshop size, the number of circuits required, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the need for upgrades from Essential Energy will increase overall costs. We provide transparent quotes based on your specific workshop and equipment requirements—there are no hidden fees involved.

Important Reminder: All Electrical Work Must Be Performed by Licensed Professionals

It is crucial to emphasise this point. In New South Wales, all electrical wiring work must be carried out by a licensed electrician. This encompasses the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to guarantee safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates across Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create serious safety hazards, and result in substantial fines. If someone offers to perform the work cheaply without a licence, it is not a saving—it is a risk that could have dire consequences.

Your Frequently Asked Questions Answered

Can I Run My Welder from a Standard Power Point?

Small stick welders (up to around 140A output) can indeed be used with a standard 10A or 15A power point. larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately or potentially cause the wiring to overheat if the breaker is faulty. If you weld regularly, it is essential to have a dedicated 32A circuit installed for safety and efficiency.

How Many Circuits Are Generally Needed in a Workshop?

The number of circuits required will depend on your tools, but a well-equipped workshop typically needs a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a couple of spares for future additions. We customise the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power is only required if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Check our complete guide on Do I Need Three-Phase Power on My Property? to determine if it suits your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will assess this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can generally be completed within 1 to 2 days. A full fit-out involving multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline along with your quote to keep you updated throughout the process.

Ensure Your Workshop Is Properly Wired for Maximum Efficiency

If you are establishing a workshop on your property and want to ensure it is done correctly from the start, reach out to us. We will visit your site, assess your space and equipment list, and develop a tailored plan that meets your power needs without compromising safety or quality.

Contact Hack-It Electrical Solutions at 0402 079 803 or reach out to us online to schedule a quote for your project.

We are your local electricians in Bellingen, proudly serving the entire Mid North Coast from Nambucca Heads to Woolgoolga and up to Dorrigo.
