Concrete Thickness for Car Hoists: Key Considerations

When preparing to install a hoist in your workshop, it is essential to assess both the condition and specifications of your floor in conjunction with your selected hoist. A car hoist exerts significant point loads through a limited number of bolts, making it vital that the underlying concrete slab can adequately bear this weight. This issue is particularly relevant for workshops located in Sydney, Melbourne, Brisbane, and throughout Australia. Here is a comprehensive guide to address this critical consideration.

There is no universal thickness applicable to every hoist installation. The ideal slab thickness is determined by the specific type of hoist, its rated load capacity, and the installation guidelines provided by the manufacturer. It is crucial for your installer, and if necessary, a structural engineer, to evaluate your floor’s suitability before any installation begins.

What Factors Influence the Floor Requirements for Your Hoist Installation?

There is no single measurement that applies universally, as each type of hoist exerts different loads on the floor. For example, a two-post hoist transfers the vehicle’s entire weight through two columns, concentrating the load at the baseplate bolts. Conversely, a four-post hoist distributes its load across four posts and over a larger footprint. Similarly, a scissor lift, which operates closer to the ground, impacts the slab in a different manner. The specific type of hoist dictates the necessary specifications rather than relying on a generic measurement.

Three main factors determine the load that your slab must support.

How to Understand Your Hoist Type and Its Load Capacity

A standard two-post hoist, typically used for cars and light commercial vehicles, has specific load requirements that differ from a heavy-duty four-post hoist designed for larger 4WDs and vans. Hoists with higher capacities exert greater loads at the anchor points, often necessitating a thicker and more robust slab. The capacity information can be found on the hoist’s data plate and in the accompanying manual, which serves as the basis for your floor specifications.

Why Following the Manufacturer’s Installation Guidelines Is Crucial

All reputable hoists are accompanied by an installation manual that specifies the minimum concrete thickness, required concrete strength, appropriate anchor types, and necessary distances from any joints or slab edges. This manual is vital for a successful installation. If the slab does not meet these criteria, the hoist installation should be postponed until compliance is achieved.

How to Evaluate the Condition and Composition of Your Existing Slab

Not all slabs of similar thickness offer the same level of support. Factors such as the quality of reinforcement, curing processes, proximity to control joints or cracks, and conditions beneath the surface all influence the slab’s ability to support a hoist. An aged slab that appears intact may still present significant risks. It is advisable to have a qualified professional evaluate the slab rather than relying solely on surface observations.

What Is the Recommended Slab Thickness for Your Hoist Installation?

While many seek a definitive number for slab thickness, it is critical that this specification comes from your hoist’s installation manual rather than a generic article. The manual outlines the minimum slab thickness, concrete strength, and often specifies a minimum curing period before anchors can be installed. Heavier hoists, specific anchoring systems, or suboptimal slabs may necessitate stricter requirements.

This approach prioritises safety. The reliability of a hoist is directly linked to the integrity of the surface it is anchored to. Specifications must originate from the manufacturer of your specific model, and consulting a structural engineer is advisable if the floor is old, uncertain, or marginal. Share details about the hoist you are considering and the condition of your floor, and we will assist you in identifying the appropriate specifications.

What Are the Indicators That Your Slab May Be Inadequate?

While a visual inspection alone cannot provide a complete assessment of a slab, several indicators should be communicated to your installer before they provide a quote. If any of these conditions apply, mention them early to facilitate a proper evaluation and avert potential issues on installation day.

Is Your Slab Thin, Aged, or Uncertain?

If you are in a leased space and cannot ascertain the thickness or construction details of the floor, resolving this question is essential. Older industrial slabs can vary significantly in quality. If documentation is unavailable, a core test or an assessment by an engineer can provide valuable insights.

Are There Cracks, Movement, or Hollow Sounds Present?

Visible cracks near the proposed anchor points, areas that have lifted or settled, or a hollow sound when tapping the surface can indicate underlying issues. While these signs do not automatically disqualify a slab from supporting a hoist, they warrant further investigation before any anchoring occurs.

Is the Hoist Installation Close to a Joint or Edge?

Anchors positioned too close to control joints, expansion joints, or slab edges can result in inadequate anchoring. Hoist manuals specify minimum edge distances to mitigate this risk. The placement of the hoist on the floor is as crucial as the thickness of the slab.

Who Assesses the Safety of Your Floor?

This consideration is vital for your safety. The suitability of your slab for a hoist is confirmed by your installer, who will adhere to the specifications outlined by the hoist manufacturer. If there is any doubt, consulting a structural engineer is advisable. This decision should not rely on informal sources such as YouTube videos or casual recommendations, as the consequences of miscalculating could be severe, including a vehicle falling.

For standard installations on known, compliant slabs, the installer following the manual is generally adequate. If the floor is old, undocumented, marginal, or if the hoist has a high capacity, engaging an engineer for assessment is prudent. A core sample can confirm the actual thickness and strength, while an engineer can determine if the slab can support the load or if modifications, such as a thickened pad or a new pour, are necessary.

At MetroBooths, we assist workshops in selecting the right hoist tailored to their specific site requirements rather than simply offering a product. Share information about your floor and the weight you intend to lift, and we will guide you to the appropriate hoist and identify any necessary checks beforehand.

How to Choose the Right Hoist for Your Existing Floor

Often, the most practical solution is to select a hoist that aligns with your existing slab, avoiding additional costs for concrete repouring. There is a diverse range of hoist types available, and the best choice depends on your floor’s characteristics, ceiling height, bay configuration, and the types of vehicles you service.

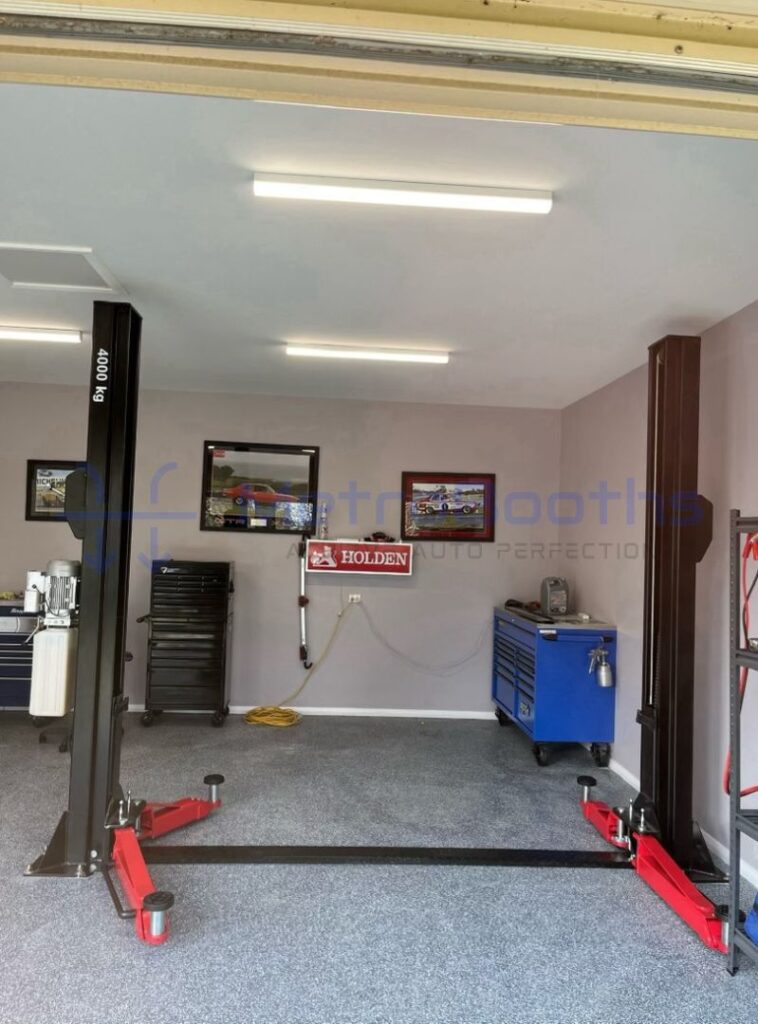

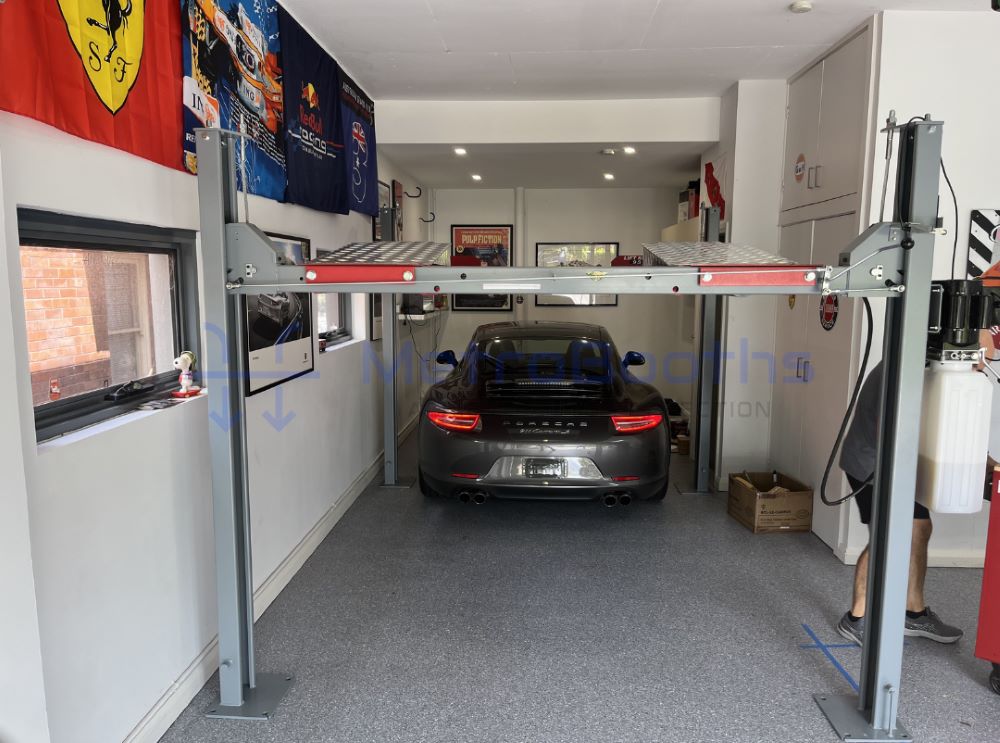

A two-post hoist is the industry standard for cars and light commercial vehicles, frequently associated with slab inquiries due to its distinct loading characteristics. If your floor or layout can accommodate a wider footprint, a four-post hoist distributes loads differently and is often preferred for storage or heavier vehicles. If space or slab depth is limited, consider a scissor lift or low-rise option.

Explore our extensive range of hoists, then consult with us about your workshop’s specifics. We provide supply and installation services throughout Australia and prefer to address any flooring concerns prior to drilling.

Frequently Asked Questions About Hoist Installation

What Is the Minimum Concrete Thickness Required for a Two-Post Hoist?

There is no universally applicable thickness for every two-post hoist, as requirements vary based on capacity and anchor type. The necessary thickness is detailed in your specific hoist’s installation manual, which outlines the minimum slab thickness and concrete strength for that model. For older or undocumented slabs, consulting a structural engineer or conducting a core test can provide confirmation. Share your hoist details with us, and we will direct you to the correct specifications.

Can a Car Hoist Be Installed on an Existing Workshop Slab?

Yes, it is often feasible, provided the existing slab meets the hoist manufacturer’s minimum thickness, strength, and edge-distance requirements. Many workshops successfully install hoists on existing floors. It is crucial to ensure that the slab conforms to the specifications rather than making assumptions. If the floor is undocumented, cracked, or questionable, it should be evaluated before installation. A core sample and an engineer’s assessment can provide the necessary clarity.

What Concrete Strength Is Required for a Car Hoist?

Most car hoists specify a minimum concrete compressive strength in their installation manuals, with higher-capacity hoists potentially requiring more robust specifications. Concrete strength is influenced not only by the mix used but also by how the slab was cured and reinforced. This is why a newly poured slab generally requires adequate time to cure before anchors are installed. Always refer to the specifications in your hoist’s manual and confirm with your installer or engineer based on your specific site conditions.

Is an Engineer Required to Assess My Floor Before Hoist Installation?

Not always, but it may be necessary in certain situations. For a straightforward installation on a known, compliant slab, following the manufacturer’s guidelines with your installer is generally sufficient. You should engage a structural engineer if the floor is old, undocumented, cracked, or marginal, or if you are installing a high-capacity hoist. An engineer can verify thickness and strength through a core test and advise whether the slab is suitable or needs remediation. When in doubt, seeking an assessment is a prudent step. It is more cost-effective than addressing the consequences of an inadequate installation.

What If My Concrete Floor Is Not Thick Enough for a Hoist?

If your slab does not meet the hoist’s specifications, installation should not proceed until the floor is brought up to the required standard. Anchoring into an insufficient slab carries significant risks, including the potential for anchor failure under load, which could result in a vehicle falling. Common solutions include pouring a thickened concrete pad in the hoist’s footprint or adding a new section of slab according to the manufacturer’s specifications. An engineer can recommend the most appropriate option for your situation.

Ensure Floor Safety Before Hoist Installation

The safety of a hoist is fundamentally linked to the integrity of the slab it is anchored to. Ensure that the floor meets all specifications, adhere to the manufacturer’s guidelines, and consult an engineer whenever uncertainty arises. By following these steps, you can secure a smooth and successful installation process.
